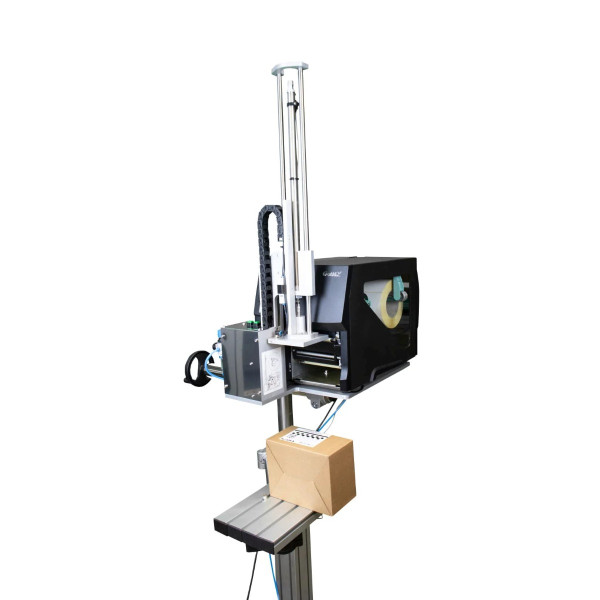

COMPLETE GODEX AG4000T Tag Applicator System with ZX1200I printer and accessories with effective travel 250mm
Availability: See Details
SKU: Godex AG4000T
Godex
€8,315.60
Check Availability
The AG4000 high quality printing and labeling The AG4000 is extremely easy to install, operate and maintain. Tags that vary in size from 10x20 mm to 100x200 mm are printed and applied to products in transporters and robotic complexes in a totally automatically or semi -automatic way in manual workflows. The pistons are available in lengths of 400 mm and 600 mm. The applicator is very compact, equipped with an air filter/separator and three external connection shots.
*Special article, upon request with the manufacturer, does not admit cancellations or returns.
*Availability from 3 to 4 weeks from the completion and payment of the order
* The information indicated below is generic for all models. Not all references include all the characteristics indicated.
The AG4000 high quality printing and labeling The AG4000 is extremely easy to install, operate and maintain. Tags that vary in size from 10x20 mm to 100x200 mm are printed and applied to products in transporters and robotic complexes in a totally automatically or semi -automatic way in manual workflows. The pistons are available in lengths of 400 mm and 600 mm. The applicator is very compact, equipped with an air filter/separator and three external connection shots.
Compatible printers: Printers of the ZX1000I and ZX1000XIXI series
Required air pressure: minimum 5 bar
Standard head size, mm: 100 x 100 (adjustable for tags from 20 x 10 to 100 x 100)
Additional head dimensions, mm: from 20 x 20 to 110 x 200
Piston race, mm: 400 (600)
Piston race, mm: 250 (450)
Tag size, mm: from 20 x 10 to 110 x 200
Tag roll diameter, mm: 200 (280 optional with external support)
Food voltage: 230 V (110 V on request)
PERFORMANCE: Up to 30 labels per minute of 100 mm x 100 mm with a 170 mm route
Up to 60 labels per minute 20 mm x 20 mm with 10 mm route
Optional: PNP photosensor;
Application heads of any size from 20 x 20 mm to 100 x 200 mm;
External support for rolls up to 280 mm in diameter;
Roller heads for application;
Elements for soil installation (pipes, hinges, etc.)
Compatible printers: Printers of the ZX1000I and ZX1000XIXI series
Required air pressure: minimum 5 bar
Standard head size, mm: 100 x 100 (adjustable for tags from 20 x 10 to 100 x 100)
Additional head dimensions, mm: from 20 x 20 to 110 x 200
Piston race, mm: 400 (600)
Piston race, mm: 250 (450)
Tag size, mm: from 20 x 10 to 110 x 200
Tag roll diameter, mm: 200 (280 optional with external support)
Food voltage: 230 V (110 V on request)
PERFORMANCE: Up to 30 labels per minute of 100 mm x 100 mm with a 170 mm route
Up to 60 labels per minute 20 mm x 20 mm with 10 mm route
Optional: PNP photosensor;
Application heads of any size from 20 x 20 mm to 100 x 200 mm;
External support for rolls up to 280 mm in diameter;
Roller heads for application;
Elements for soil installation (pipes, hinges, etc.)
https://www.etiden.com/EN/godex-ag4000t-godex.html37536COMPLETE GODEX AG4000T Tag Applicator System with ZX1200I printer and accessories with effective travel 250mm<style>#html-body [data-pb-style=IPT67P2]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}</style><div data-content-type="html" data-appearance="default" data-element="main">The AG4000 high quality printing and labeling The AG4000 is extremely easy to install, operate and maintain. Tags that vary in size from 10x20 mm to 100x200 mm are printed and applied to products in transporters and robotic complexes in a totally automatically or semi -automatic way in manual workflows. The pistons are available in lengths of 400 mm and 600 mm. The applicator is very compact, equipped with an air filter/separator and three external connection shots.</div><div data-content-type="row" data-appearance="contained" data-element="main"><div data-enable-parallax="0" data-parallax-speed="0.5" data-background-images="{}" data-background-type="image" data-video-loop="true" data-video-play-only-visible="true" data-video-lazy-load="true" data-video-fallback-src="" data-element="inner" data-pb-style="IPT67P2"><div data-content-type="text" data-appearance="default" data-element="main"><p> </p>
<p> </p>
<p>AG4000T complete system, ZX1200i printer and accessories. Effective travel distance: 250mm</p>
<p>Printers and accessories<br>ZX1200i ZX1200i Printer<br>ZX1200REB ZX1200i Rewinder<br>GP-031-Z2I003-001 ZX1200i applicator interface (5V/24V)</p>
<p>Applicator Arm<br>AG-4000-400001 AG4000T label applicator. Effective travel distance 250mm. palette not included</p>
<p>Modular Accessories Applicator<br>AG-4000-HEASTA Standard trowel 100 x 100mm with sensor (automatically applies and retracts)</p>
<p>AG-2000-123322 Metallic floor support. Removable<br>AG-2000-110112 Tube 50x3mm 700mm<br>AG-2000-110110 Positioner 50x3mm 500mm, advance 290mm<br>AG-2000-110106 90 degree clamp. 50mm diameter to use with positioner<br>AG-2000-110108 Clamp<br>AG-4000-VTE180 Sensor 24V AG4000 **<br>AG-2000-110151 Sensor holder **</p>
<p>AG4000 Complete System</p>
<p>Optional (purchase separately)<br>AG2000-WALAMP Luminous Beacon AG2000 (ZX)<br>AG2000-WABRAC Light beacon support AG2000 (ZX)</p>
<p>** Full configuration includes sensor and bracket although many installations may not require them.</p></div></div></div>https://www.etiden.com/media/catalog/product/cache/8e0900980d802d9bb649187a089d520a/g/o/godex_ag4000_4_2.jpg8315.6instock8315.68315.600Godex000https://www.etiden.com/media/catalog/product/g/o/godex_ag4000_4_2.jpg303723753837540375413754237543375443754537546375485038950390503915039250393/Godex2023-04-14T12:33:14+0000
