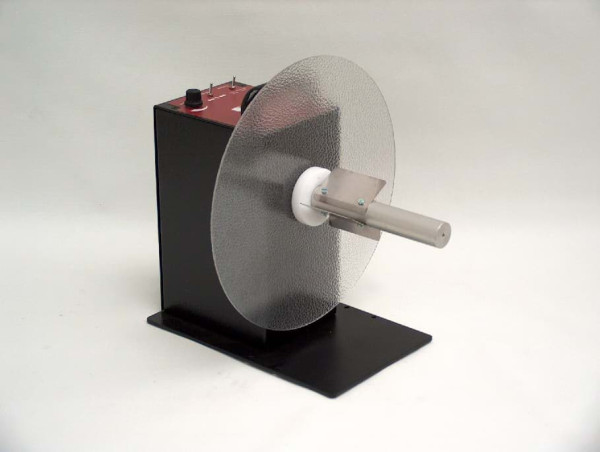

Labelmate Label Rewinder - CAT-3 Standard, 38mm

The CAT-3-STANDARD handles labels up to 155mm wide and will end a roll of labels to a diameter of 300 mm. Torque and direction are fully controllable from the control panel. torque ranges double provide plenty of energy for use with a LABELMATE cutter

technology Constant Adjustable TorqueTM (" CAT ") of LABELMATE has become a silent and easy to use CAT-3 in the rewinder label "industry standard". There are no belts or clutches uncomfortable and annoying. CAT-3-STANDARD handles labels up to 155 mm wide and wound a roll of labels up to 300 mm diameter. Torque and direction are fully controllable from the control panel. Ranges two pair provide ample power to also use a LABELMATE cutter
for labels wider up to 255 mm, choose the CAT-3-10 ". the CAT-3-ACH model includes an adjustable support core for any size core 25 mm to 101 mm diameter and up to 155 mm wide. Guide optional adjustable paper APG-CAT with movable arm can be installed in minutes on the motherboard of the CAT-3-ACH or CHUCK. This accessory low cost guide the outer edge of the label roll while rewound to ensure uniform roll alignment. the CAT -3-cHUCK it includes fast closing chuck "Quick-Chuck" ™ of LABELMATE, which enables faster loading and unloading of cores and label rolls. CAT-3-CHUCK is ideal for cutting labels, production environments high volume or anywhere you want with maximum convenience in Rewinders. The CAT-3-CHUCK is available cores 38, 40, 44, 50, 70, 76 and 100 mm. The CAT-3 handles any work rewinding and its torque range "HIGH" can also feed the LABELMATE S-100 or S-200 Label Slitters. The CAT-40G is a motor driven gear for more torque. Accepts rolls with larger diameter up to 400 mm. It is equipped with Chuck Core locking fast LABELMATE "Quick-Chuck" tm
note that if you are placed after printing needs the CAT-40G-TA. The CAT-3-TA Rewinders service tag pesadoEl CAT-3-TA is a CAT-3 with tensioning arm specially designed for applications requiring fixed fabric tension the TA is available for all models of CAT-3. IMPORTANT NOTE: CAT-3-TA also be used as a CAT-3 medium with the same characteristics. Construction of heavy gauge steel allows CAT-3 / rewinder CAT-3-TA simply placed in place. Special slip feet keep the unit from moving
