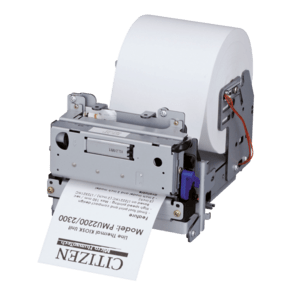

Citizen PMU-2300iii LPT, 8 points/mm (203dpi), presenter

Compact installation printing units Citizen PMU2200ii/2300ii produce receipts up to 150 mm per second and 8 points/mm (203 ppp) by direct thermal printing. They can process rolls with a width of 50, 60 (PMU2200ii) and 80 mm (PMU2300ii), a maximum paper thickness of 150 µ and varying roll diameters up to 102 mm. The operating temperature range of -20 to +60 ° C allows specially demanding applications. The rapid paper manipulation, as well as several assembly options for the rolls and printing units, provide a degree of flexibility that is especially required in facilities in machines and kiosks systems. Depending on its application, a horizontal and vertical variant can be used, with the supply of paper placed behind or under the unit. The entire mechanism can be easily accessed at any time, which allows technicians to solve paper jams in seconds. The paper can be recharged from almost all sides, even the print head is very easy to clean.

An optional label printer version with integrated black brand sensor is also available. A variety of interfaces (parallel, RS-232, USB) guarantees rapid integration with existing systems.
